ProTank® Modular Tank
Global Synthetics provides a complete range of geo-composite drainage products and systems for complete point source water management. Global Synthetics drainage products and systems manages stormwater as a resource and enhances the social and environmental amenity of the urban landscape. Global Synthetics drainage products are lightweight and efficient to install. The products are a replacement for traditional aggregate drainage treatments.
Product Information: ProTank® Modular Tanking System is a unique modular subsurface drainage system designed to collect water at its source and can be used in any soil type. ProTank® has the flexibility to infiltrate, attenuate, detain or harvest water for re-use. It's lightweight, strong structural design, modular nature, high void surface area and storage volume up to 90% of the excavated area makes the product ideal for underground rainwater harvesting, infiltration, attenuation tanking system for domestic & commercial applications, grass swales systems, retrofits of open concrete channels, roadside drainage systems, grey water & septic leach fields.
The unique domed webbing profile of the ProTank® components provide exceptional strength.
Applications

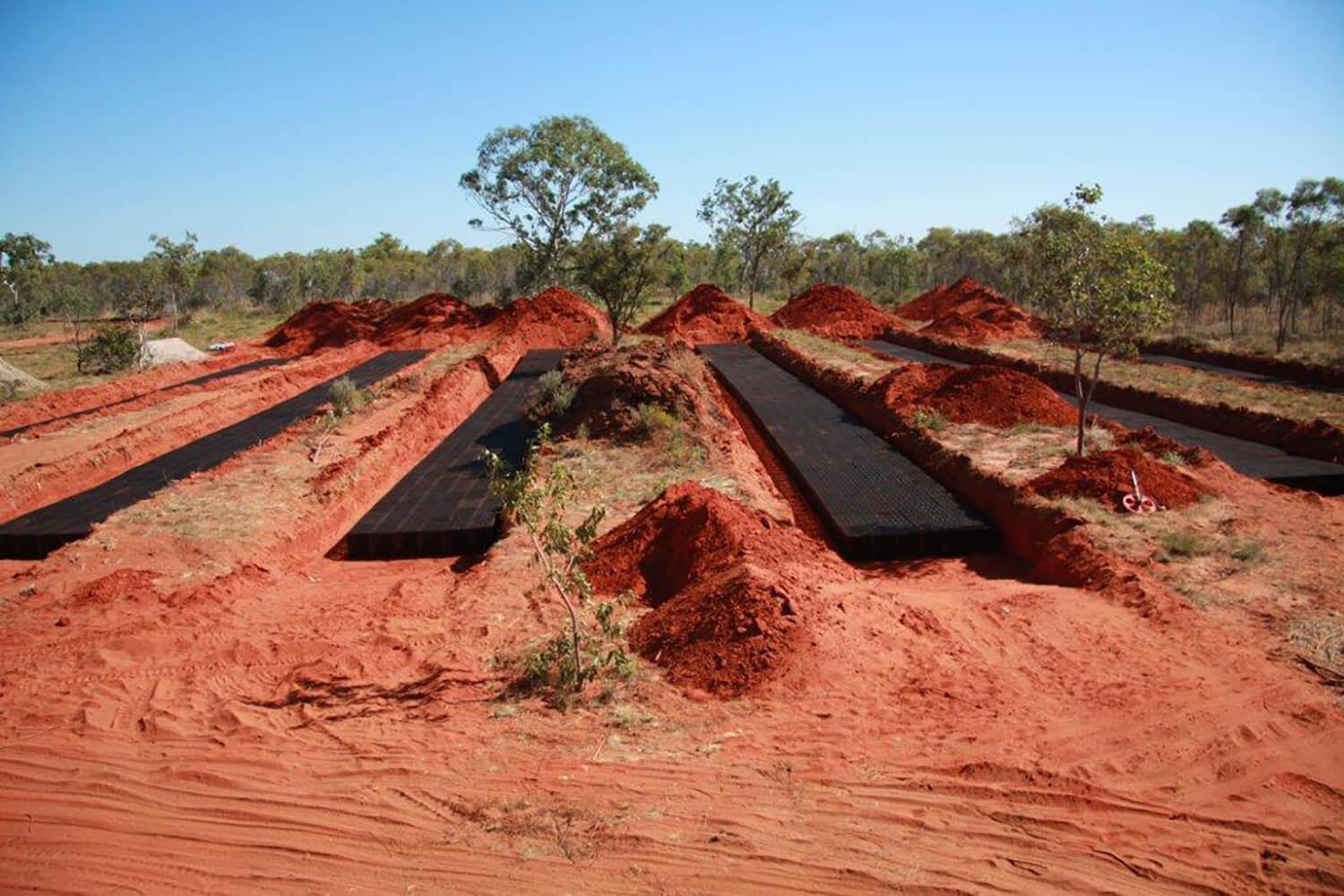

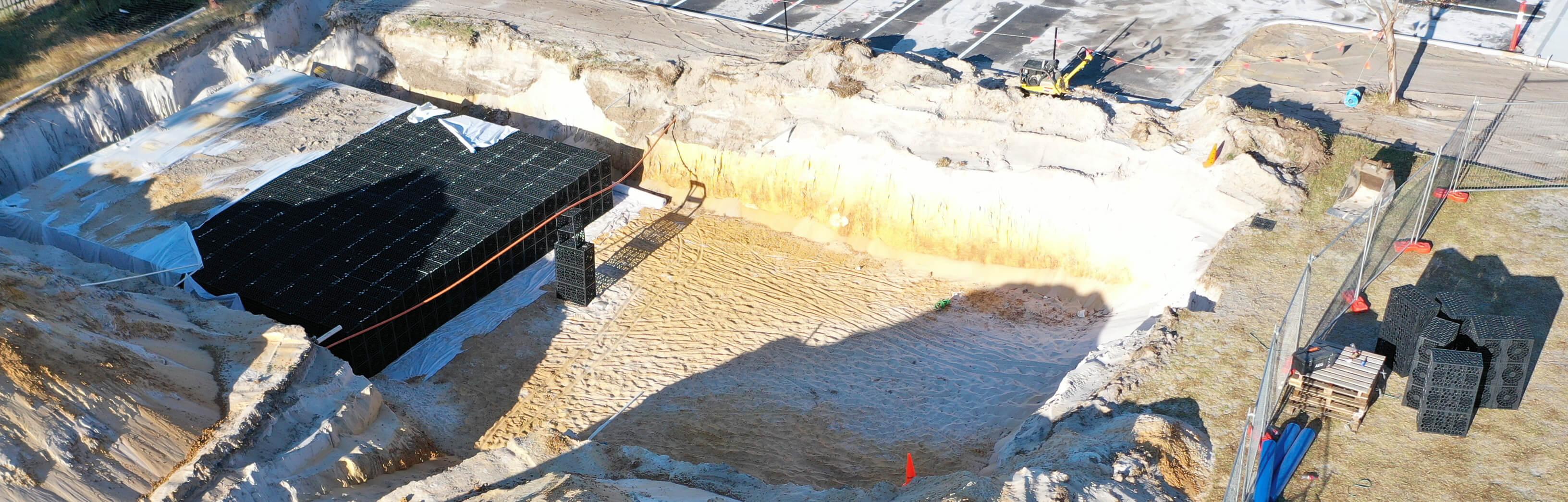

ProTank® can be installed under driveways, car parks, roads, landscaped areas and other trafficable applications.
Benefits of ProTank®
Manufactured from premium quality recycled resin to meet the most demanding performance requirements.
Generous internal and surface void area provides optimum storage and/or infiltration capacity.
Easy access via specially designed ports on every surface of the module. This ensures trouble free access and maintenance.
No requirement for imported drainage aggregate or special fill.
Low cost, light weight and fast safe installation.
Can be installed as ‘single block gallery’ or ‘finger gallery’ to accommodate a variety of hydraulic conditions and space allowances.
Installation
Modules are assembled using two components or ‘plates; both having dedicated entry ports to cater for five different pipe sizes. The smaller plate can accommodate pipes up to 30mm diameter. This makes ProTank® modules ideal for connection to domestic and commercial services. The dedicated entry ports negate the need to cut holes in the module which sacrifice structural integrity.
