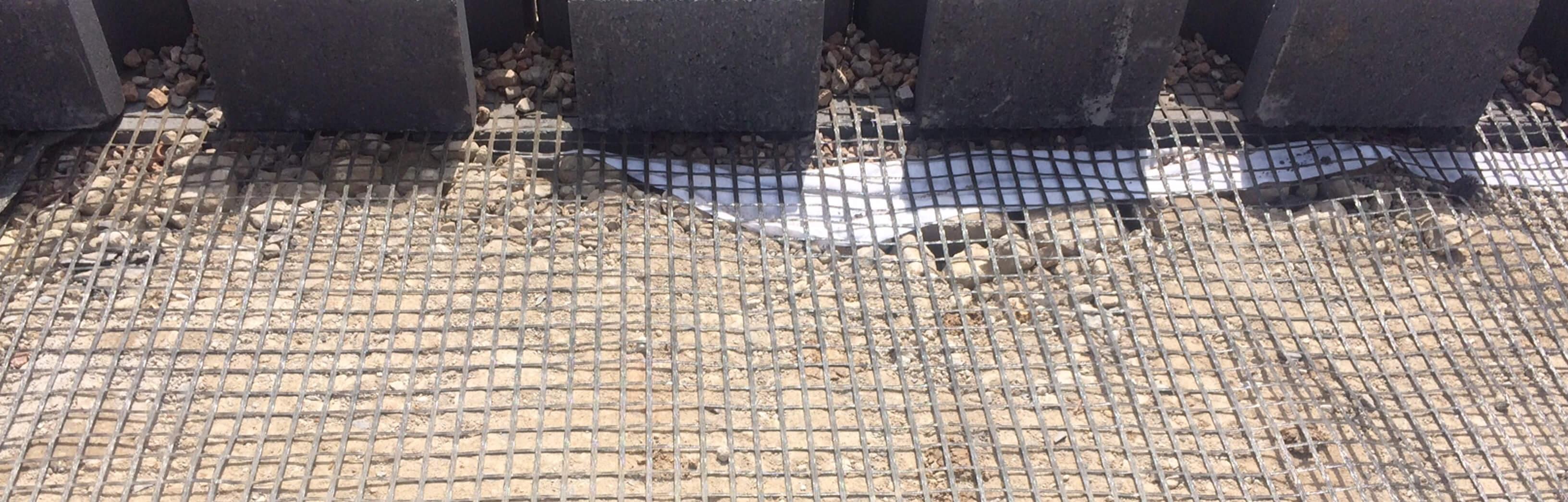

ACEGrid® PET

ACEGrid® is an engineered woven geogrid that has exceptionally high strength characteristics at low levels of strain. The product is additionally coated with a polymer that provides high resistance to degradation in soil environments as well as providing additional UV and mechanical damage protection to the fibres. The ACEGrid® geogrids may be constructed with tensile strengths up to 900 kn/m. Strains generated at ultimate tensile strength are typically less than 10%. being composed of high tenacity polyester fibres they deliver low creep strains when subject to high tensile loads. Creep strains of less than 1% at design loads of 40% of the initial characteristic tensile strength at 120 year design life, are obtained.

ACEGrid® is made from high tenacity polyester fibres that have a demonstrated history of performance both here in Australia and around the world. ACEGrid® has the ability to carry significant loads imposed upon the product from a range of soil reinforcement applications including slopes and walls and provide innovative solutions in applications that will benefit from the inclusion of a tensile element within the soil structure.

ACEGrid® is suitable for use in short term as well as very long term ground support applications with design lives in excess of 120 years. The product may be manufactured for site specific requirements. the rolls are available in wide widths up to 5.0m to minimise wastage from overlap requirements.

Application:

• Steepened Reinforced Slopes

• Retaining Walls

• Veneer Reinforcement of Landfills

• Soil Reinforcement over piled foundations

• Support over voids

• Capping of Talings Ponds

• Basal Reinforcement of Soft Soil

ACEGrid® has been exhaustively tested and used in a wide variety of soil reinforced structures throughout the world. Specifically ACEGrid® has been used in a significant number of structures throughout Australasia.

ACEGrid® is very easy to install and is available in wide width rolls to minimise wastage during installation
