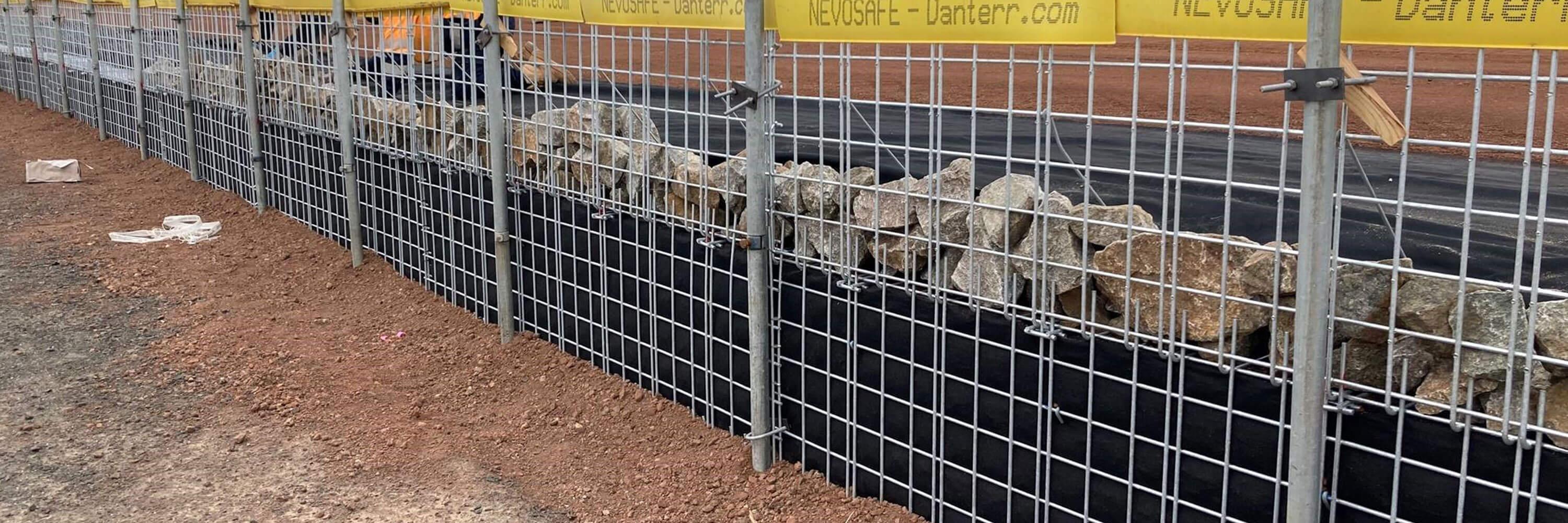

MSE Wire Wall Hero

General Information

Save time and money on your next embankment project with MSE Wire Wall Systems from Global Synthetics. These historically proven, cost-effective wire mesh retaining wall and abutment systems feature alternating layers of heavy-duty galvanized steel soil reinforcement and select backfill to create an extremely stable mechanically stabilized earth (MSE) structure. The wall can go above 30m height and can handle extreme surcharge loads.

Product Information

Fast And Easy-To-Install Retaining Wall Systems

Our MSE Wire Walls are ideal for fast and economical installation using native backfill materials whenever possible. These types of retaining walls and abutment are ideal for permanent or temporary applications, including bridge abutments, grade separations, crusher walls and, of course, headwalls for GLOBAL SYNTHETICS’s Buried Metal Bridges or abutments for our prefabricated span bridges.

The versatile Track-Strip Soil Reinforcement System

Our MSE Wire Walls use our innovative Track-Strip Soil Reinforcement System to retain the soil mass behind the walls. Track-Strips make the walls easier to design, store on the job site and construct — resulting in greater project savings. See our brochure for more on this innovative advancement in MSE wall construction.

Retaining Walls That Adapt Well to Curves, Angles and Steps

Our MSE Wire Walls easily accommodate curves, angles or steps. The wire mesh retaining wall facing and soil reinforcement mats can adapt to culverts, bridge piles or other site anomalies.

Wire Wall Retaining Wall Finish Options

Wire Walls can be left “natural,” with exposed wire and select rock face, or they can be designed to accept a variety of finishes such as grass, vegetation and shotcrete. Temporary wire mesh retaining walls, with black steel and filter fabric at the face, are also available.

Wire Walls can exceed 30m height and can handle extreme surcharge loads.

Achieve Extreme Height and Surcharge Loads Please refer to the downloadable brochure for more information.

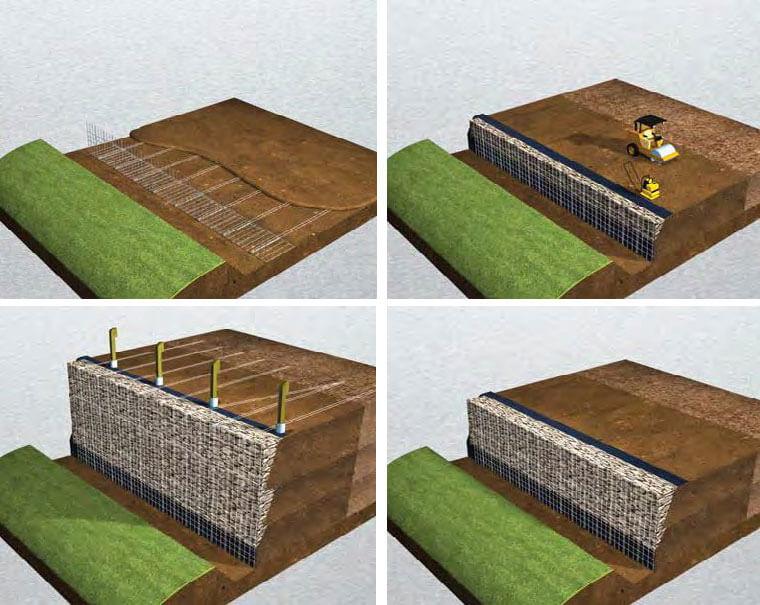

MSE Wire Wall Installation 1

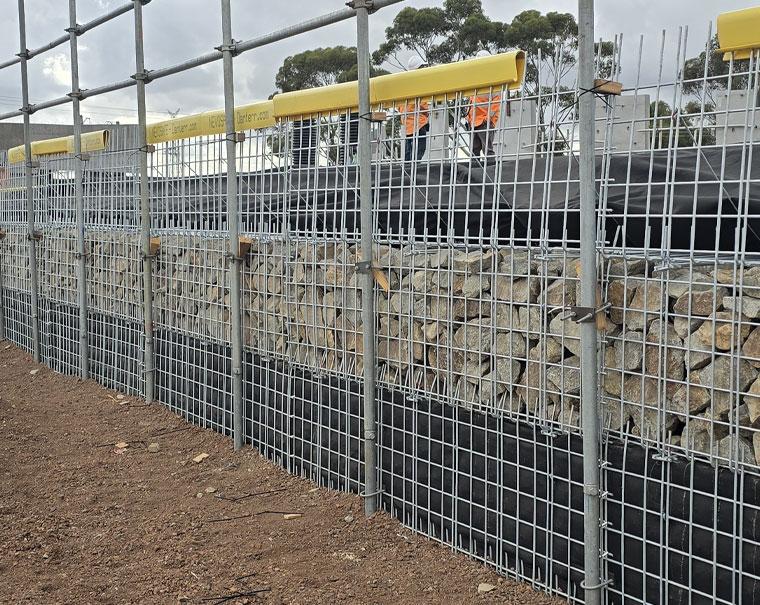

MSE Wire Wall Installation
