Hervey Bay Aviation Precinct

Project Background

Fraser Coast Regional Council (FCRC) undertook a runway assessment of its Hervey Bay Airport facility in November 2014, as part of its airport master planning initiative. The investigation and report were compiled by GHD and presented to Council in December 2014. Conclusions from the report indicated that the runway was approaching its useful life expectancy and deterioration was as per the predicted wear rate. However, increased traffic from medium passenger jets could increase the rate of wear and decrease the predicted life span.

Problem

The areas where the taxiways and aircraft parking extension areas were to be constructed were situated in a low-lying, low CBR area of the airport confines. The initial design was to dig out these areas up to a depth of 1m + in some cases, compact the subgrade and infill the voided area with a geotextile and rock infill. This meant a huge amount of rockfill would be required, the nearest rock supply was some 30kms from the site. This would add a very large cost to the project transporting rock this distance and not to mention the wear and tear on local access roads and traffic congestion from numerous deliveries of rock required each day.

Solution

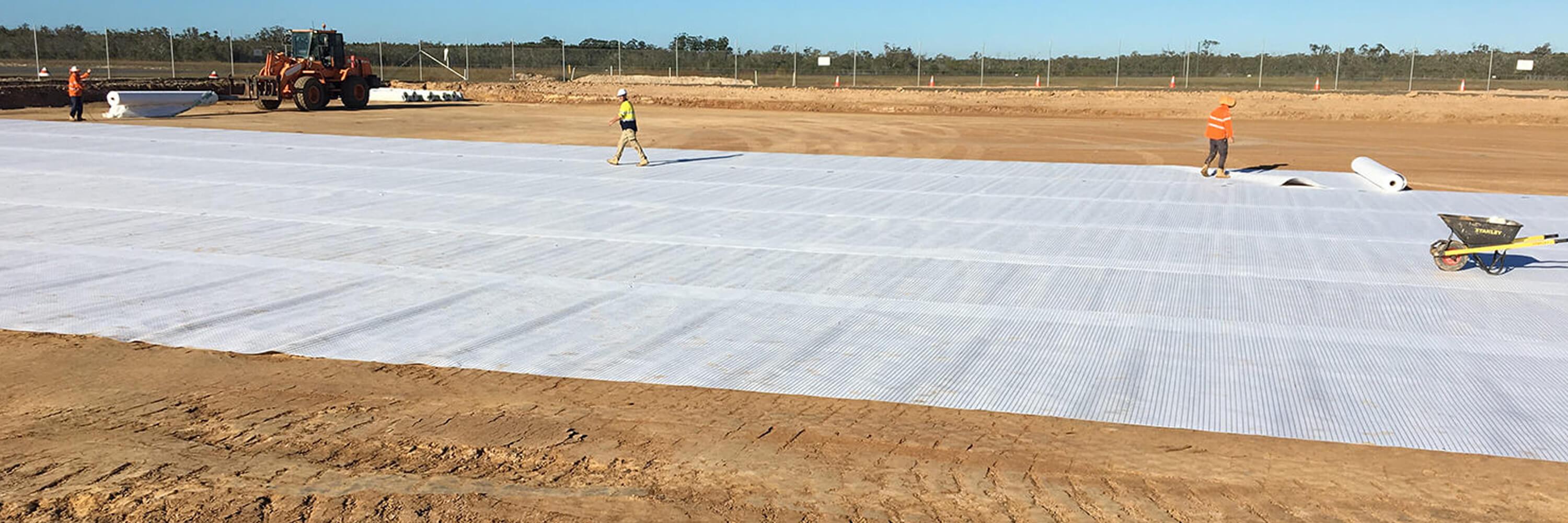

Global Synthetics was contacted by the contractor to offer any solutions to bring the costs down for the client and remove some of the traffic from local streets. Utilising the design team from Global Synthetics we were able to provide a solution that included a layer of Combigrid® 40/40 Q1 geocomposite on top of the existing subgrade and a layer of Secugrid® 30/30 Q1 geogrid within the rock layer.

Combigrid® saves construction costs and time, through the benefits of two functions in one product. Combigrid® incorporates a geotextile that is integrated between the geogrid bars, reducing the risk of geotextile delamination. It makes the installation process easier and faster in a single operation, without the risk of recoil due to its flat structure.

Results

Through using the high stiffness reinforcement and separation benefits of Combigrid® and the reinforcement of Secugrid®, the client achieved considerable time and cost savings overall.

In excess of 50000m2 of both Combigrid® 40/40 Q1 and Secugrid® 30/30 Q1. The project was constructed successfully, delivered on time and within budget to the client. Construction was completed in 2019.

Benefits and Features of Combigrid® and Secugrid®

• Quick and easy to install

• very high strength at low strains

• Reinforcement, filtration, separation and drainage in just one product, reducing aggregate thickness

• Quality German manufactured Product

• Wide width rolls

• ISO9001 certified

Choosing the right product for your application will depend on a range of factors. For assistance in choosing the right product for your individual project, contact the specialist engineering team at Global Synthetics.
